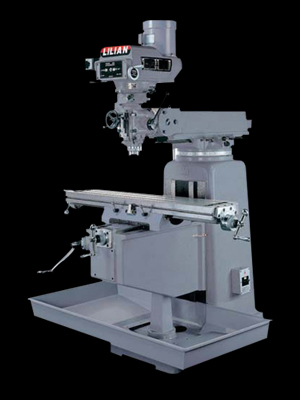

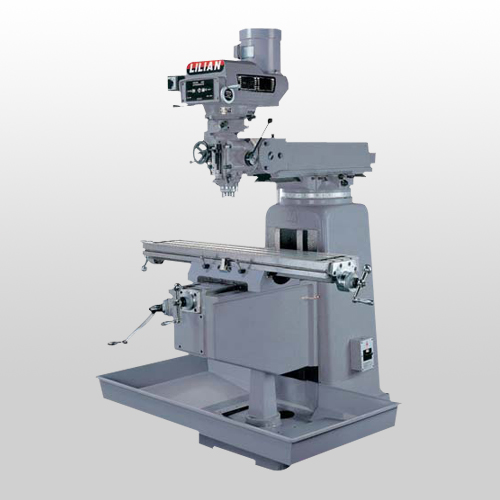

	3H / 3VH / 3VI
Table Size	254 x 1270mm
Travel (X x Y x Z)	914 x 406 x 406mm
Quill Travel	127mm
Quill Diameter	85.725mm
SpindleMotor	3HP
SpindleTaper	R8 / NT30
Spindle Speeds-rpm	60-2720 / 60-4200 / 60-4200
Overall Depth (L)	1720mm
Overall Width (W)	1640mm
Overall Height (H)	2150mm
Net Weight	1250 Kgs
