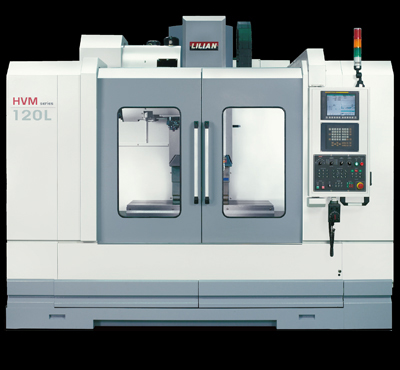

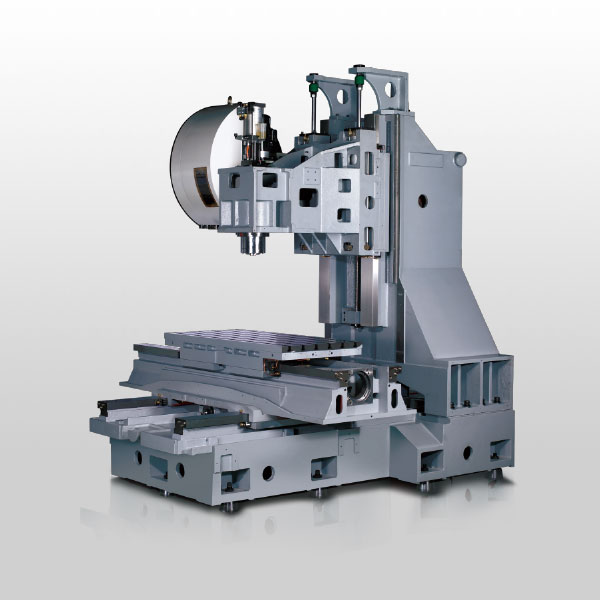

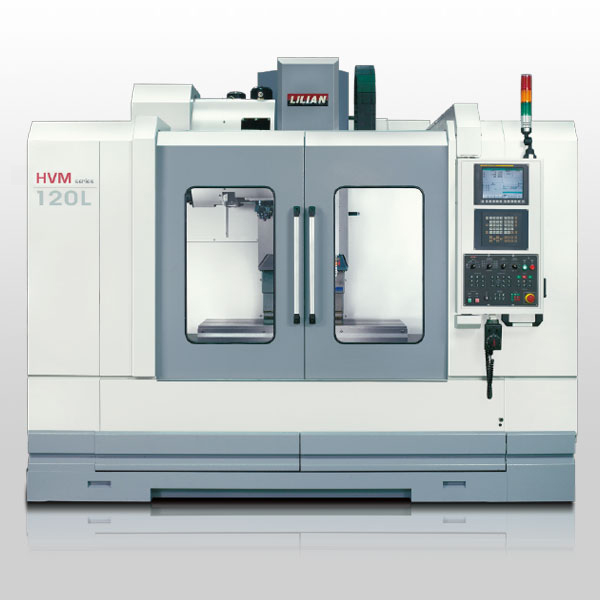

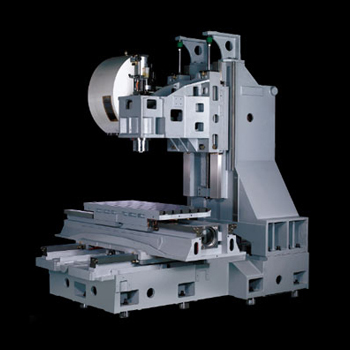

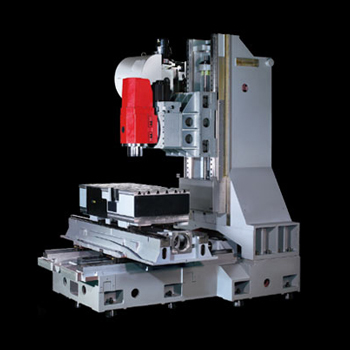

| Extra Wide Rigidity Column Base. | Double Rigidity Wide Column Without Counter Weight. |
One Piece Double Saddle. |
  |

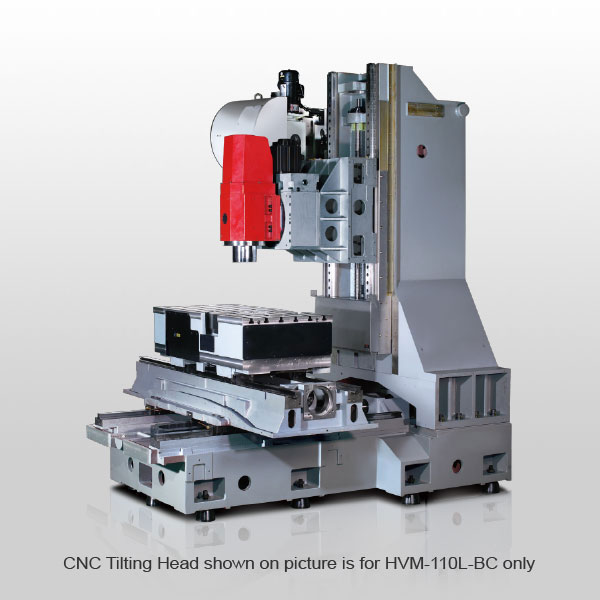

  CNC Tilting Head shown on picture is for HVM-110L-BC only |
  |
|
| HVM-120L | HVM-120H | ||
| X+Y+Z linear guide | X+Y+Z box way | ||
| Working Table |
Table Size | 1260 x 610 mm | 1260 x 610 mm |
| T-Slot (width x dis.x no.) | 18 x 100 mm x 6 | 18 x 100 mm x 6 | |
| Travel (X x Y x Z) | 1200 x 650 x 630 mm (Z-1000 option) |
1200 x 650 x 630 mm | |
| Positioning XYZ axis | 0.005 / 300mm | 0.005 / 300mm | |
| Repeatability XYZ axis | ± 0.003mm | ± 0.003mm | |
| X/Y/Z-Axis Motor (Z axis with Brake) | 4 / 4 / 4B kw | 4 / 4 / 4B kw | |
| Rapid Feed Rate (X/Y/Z) | 36 x 36 x 36 M/min (42 Opt.) | 20 x 20 x 20 M/min | |
| Feed Rate (X/Y/Z) | 1-20000 mm/min | 1-20000 mm/min | |
| Max. Table Load | 800 kgs | 1000 kgs | |
| Spindle | Taper | BT40 | BT40 |
| Main Motor | 11 / 15Kw | 11 / 15Kw | |
| Spindle Speed (RPM) | Direct Drive : 10000 / 12000 / 15000 Built-IN : BBT40 / HSK63A 20000 |
Direct Drive : 10000 / 12000 / 15000 | |
| Spindle Nose Vertical to Table Surface | 100-730 mm (1000 mm Op.) | 100-730 mm | |
| Spindle Center to Column | 740 mm | 740 mm | |
| Tool Magazine | Tool Storage Capacity (PCs) / ATC Type | 30 ARM 40 CHAIN |
30 ARM 40 CHAIN |
| Max. Tool Diameter / Weight | 76 mm / 6 kgs | 76 mm / 6 kgs | |
| Miscellaneous | Air Requirement | 6 kg/cm2 | 6 kg/cm2 |
| Power Requirements (KVA) | 30 | 30 | |
| Coolant Tank Capacity (L) | 300 | 300 | |
| Machine Weight | 7,500 Kgs | 7,500 Kgs | |
| Machine Layout (W x D x H) | 3400 x 3370 x 2810 mm | 3400 x 3370 x 2810 mm | |
| STANDARD ACCESSORIES | |
| ‧Coolant System ‧Auto Lubrication ‧Spindle Air Blast ‧Compact Fluorescent Work Light ‧Alarm System ‧Work Air Blast ‧Rigid Tapping ‧Heat Exchanger |
‧Enclosed Splash Guard ‧Auto Tool Changer ‧3 Axes Telescopic Steel Guard ‧RS232/ RJ45/ USB Interface ‧Auto Power Off (M30) ‧M.P.G ‧Level Pads & Bolts |
| OPTIONAL ACCESSORIES | |
| ‧Chain Type Chip Conveyor &
Chip Cart ‧Oil Coolant ‧CNC Rotary Table ‧Upgrade Motor ‧TS 27R Tool Setting ‧OMP40 / OMP60 Work Piece Setting |
‧Isolate type Transformer ‧Voltage Stabilizer ‧Angle Encoder (A,B,C axis) ‧Air Cooler for Control Box ‧Oil Skimmer ‧Air Gun & Water Gun |
| ‧Germany brand Heidenhain X+Y+Z axis Linear Encoders | |
