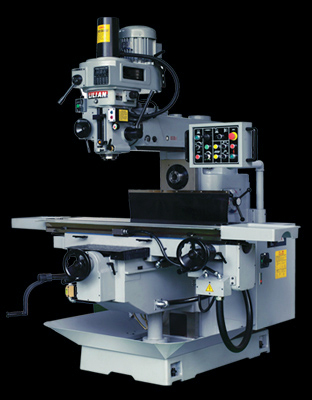

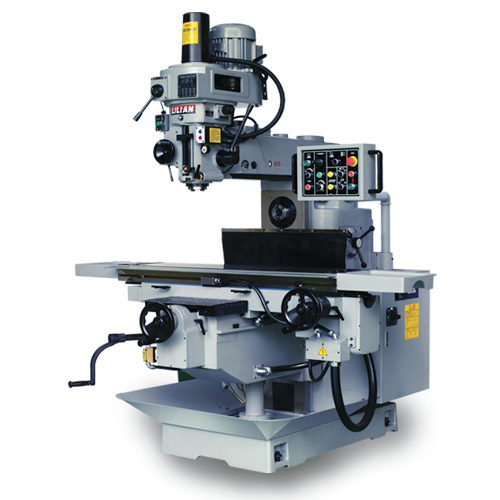

7H / 7VI
|
| Table Size |
305 x 1350 mm |
Travel
|
X : 970 mm |
Y: 400 mm
|
Z: 400 mm
|
| Overarm: 450 mm |
| Quill: 140 mm |
| Vertical Spindle |
Taper: NT#40
|
Speed:
75-3600rpm (16 steps) / 60-3600rpm
|
Quill Diameter: 110 mm
|
Horizontal Spindle Head
|
Taper: NT#40 |
Speed: 70-1050 rpm (9 steps)
|
Motor
|
Main Spindle: 5HP
|
Horizontal Spindle: 5HP
|
Vertical Feed: 1HP
|
Lube. Pump: 150W
|
Electromagnetic Pump: 40W
|
Feeds
|
Cutting on X,Y: 0-1500 mm/min
|
Rapid on X,Y: 3000 mm/min
|
Vertical: 1150 mm/min
|
Swivel Angle of Main Spindle Head
|
45° (R & L)
|
Distance of Spindle Center to Column Surface
|
150 - 600 mm
|
Distance of Spindle Nose to Table Surface
|
0 - 530mm
|
Floor Size
|
2050 x 1840 x 2380 mm |
| Net Weight |
2400 / 2430 Kgs |
| * |
Standard
Features: X&Y axes ballscrews and be equipped with AC Servo Motors
and feeds controlled by Inverter, 1HP elevating Motor, Auto lubrication
Pump, Coolant Pump System, Halogen Work Light,. |
|
