| Tilting Rotating Table 200/350/450mm With Option Angle Encoder (A+C). |
CNC Tilting Head of Roller Gear Cam Drive. |
Accuracy B/C Axis With Heavy Table Load Option With High Angle Encoder (B+C). |
  |
  |
|

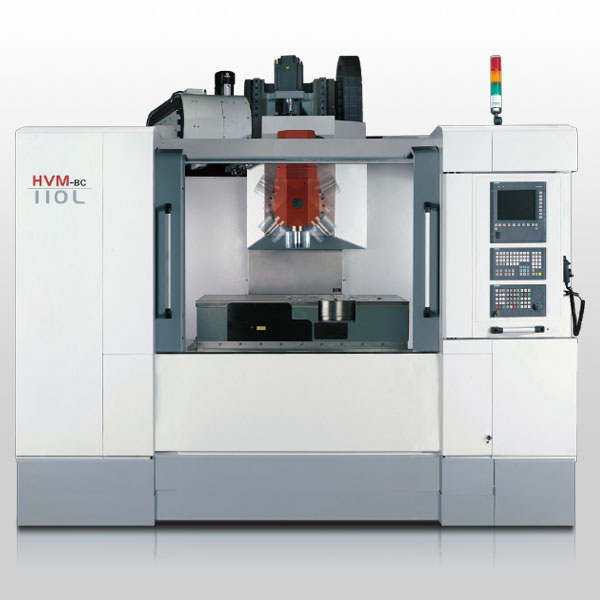

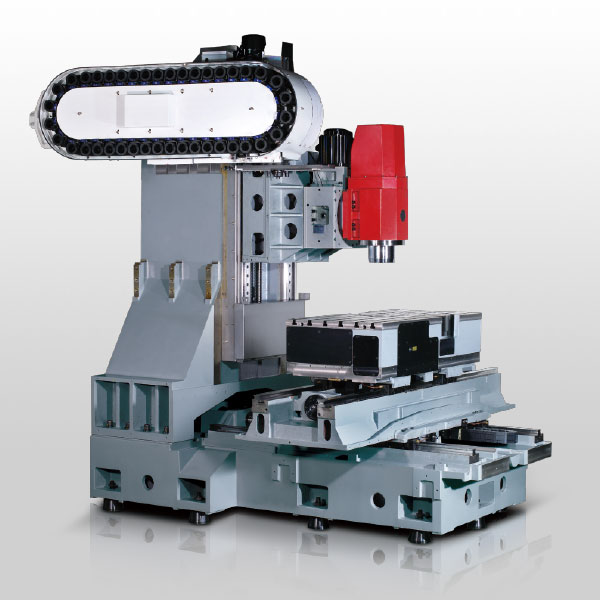

| HVM-110L-BC | HVM-110L-AC | ||
| Roller Cam Driver B-axis +550mm built-in work table C-axis |
Fixed Head + Dia.400mm Tilting Rotary Table |
||
| Working Table |
Table Size | 1260 x 620 mm | 560 x 400 mm (400 dia.) |
| T-Slot (width x dis.x no.) |
18 x 100 mm x 6 | ||
| Travel (X x Y x Z) | 1200 x 650 x 750~930 mm (Z axis: depends spindle head tilting degree) |
850 x 650 x 660~717 mm | |
| Positioning XYZ axis | 0.005 / 300mm | 0.005 / 300mm | |
| Repeatability XYZ axis | ± 0.003mm | ± 0.003mm | |
| X/Y/Z-Axis Motor (Z axis with Brake) |
22 / 22 / 30 Nm |
22 / 22 / 22 Nm |
|
| Rapid Feed Rate (X/Y/Z) |
36 x 36 x 30 M/min | 36 x 36 x 30 M/min | |
| Feed Rate (X/Y/Z) | 1-20000 mm/min | 1-20000 mm/min | |
| Max. Table Load | C axis: 770 kgs | C axis-200 kgs, A axis-100 kgs |
|
| Spindle | Taper | BBT40 | BT40 |
| Main Motor | S1/95 Nm (FANUC) |
S1/70 Nm (FANUC) |
|
| Spindle Speed (RPM) | 16000 / 20000 / 24000rpm |
12000 / 15000 rpm |
|
| Spindle Type (RPM) | Built-IN : BBT40 / HSK63A | Direct Drive: BT40 | |
| Spindle Nose Vertical to Table Surface |
115~915 mm depends head tilting degree |
100-900 mm | |
| Spindle Center to Column | 759 mm | 737 mm | |
| Tool Magazine | Tool Storage Capacity (PCs) / ATC Type |
40 CHAIN | 30 ARM / 40 CHAIN (Option) |
| Max. Tool Diameter / Weight | 80 mm / 6 kgs | 80 mm / 6 kgs | |
| Miscellaneous | Air Requirement | 6 kg/cm2 | 6 kg/cm2 |
| Power Requirements (KVA) | 50 |
50 |
|
| Coolant Tank Capacity (L) | 300 | 300 | |
| Machine Weight | 7,800 Kgs | 7,600 Kgs | |
| Swivel Head (A & B Axis) |
Driver Type | Roller Cam | Worm Gear |
| Reduction Ratio | 1 : 75 |
1:90 / 1 : 180 | |
| Tilting Range | --120° ~ +120° | --120° ~ +120° | |
| Rotation Speed | 26.6 rpm (Motor 3000rpm) |
22.2 / 11.1 rpm (Motor 2000rpm) |
|
| Indexing Accuracy |
7" |
30" |
|
| Min. Unit (deg) |
0.001° | 0.001° | |
| Repeatablity Accuracy |
Unidirection:2", Bidirection:4" |
Unidirection:4", Bidirection:8" |
|
| Pneumatic/Hydraulic Clamp Force(kg.m)(P:5kg/cm2) | 35 |
280 Kg - m |
|
| Rotary Table (C Axis) |
Type | Worm Gear | Worm Gear |
| Driver Type | 1 : 150 | 1 : 180 |
|
| Table Diameter | 550 mm | 400 mm | |
| Center Bore Diameter | Dia.55H7 | Dia. 110mm |
|
| Max. Rotating Speed |
13.3 rpm (Motor 3000rpm) |
11.1 rpm (Motor 2000rpm) |
|
| Min. Increment |
0.001° | 0.001° | |
| Repeatability Accuracy |
4" |
Unidirection:4", Bidirection:8" |
|
| Pneumatic/Hydraulic Clamp Force (kg-m)(P:5kg/cm2) |
35 Kg - m |
200 Kg - m |
|
| Indexing Accuracy (sec.) |
10" |
15" |
|
| Max. Table Loading |
770 Kgs |
200 Kgs |
|
| STANDARD ACCESSORIES | |
| ‧Coolant System ‧Auto Lubrication ‧Spindle Air Blast ‧Compact Fluorescent Work Light ‧Alarm System ‧Work Air Blast ‧Rigid Tapping ‧Heat Exchanger |
‧Enclosed Splash Guard ‧Auto Tool Changer ‧3 Axes Telescopic Steel Guard ‧RS232/ RJ45/ USB Interface ‧Auto Power Off (M30) ‧M.P.G ‧Level Pads & Bolts |
| OPTIONAL ACCESSORIES | |
| ‧Chain Type Chip Conveyor &
Chip Cart ‧Oil Coolant ‧CNC Rotary Table ‧Upgrade Motor ‧TS 27R Tool Setting ‧OMP40 / OMP60 Work Piece Setting |
‧Isolate type Transformer ‧Voltage Stabilizer ‧Angle Encoder (A,B,C axis) ‧Air Cooler for Control Box ‧Oil Skimmer ‧Air Gun & Water Gun |
|
‧Germany brand Heidenhain X+Y+Z axis Linear Encoders ‧Heidenhain OPTION Kinematics Text Package |
|
