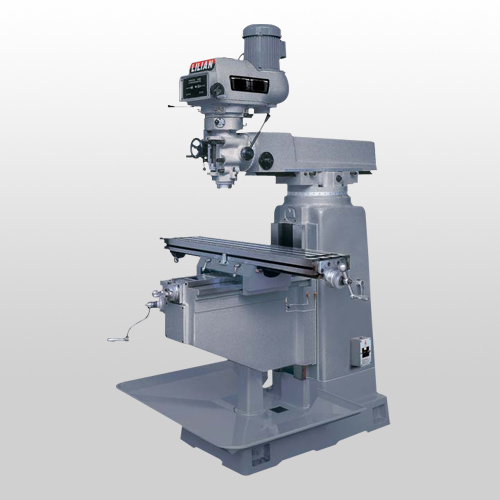

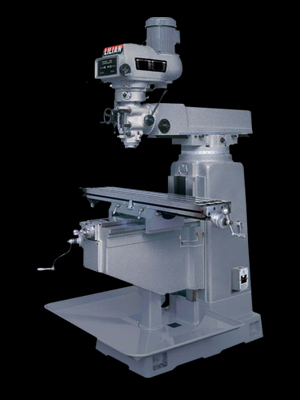

	5H / 5VH / 5VI
Table Size	254 x 1270/1372mm
Travel (X x Y x Z)	914/1016 x 445 x 445mm
Quill Travel	127mm
Quill Diameter	105mm
SpindleMotor	5HP
SpindleTaper	NT40
Spindle Speeds-rpm	60-3450 / 60-4200 / 60-4200
Overall Depth (L)	1720mm
Overall Width (W)	1510mm
Overall Height (H)	2240mm
Net Weight	1650 Kgs
