| Belt Drive Spindle. | Direct Drive Spindle. | Built-In Drive Spindle. |
  |
  |
  |
  |

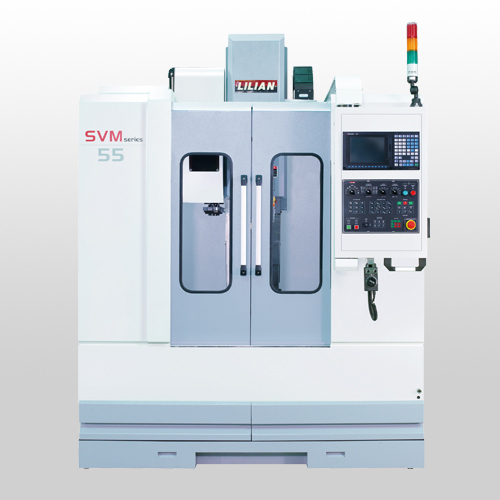

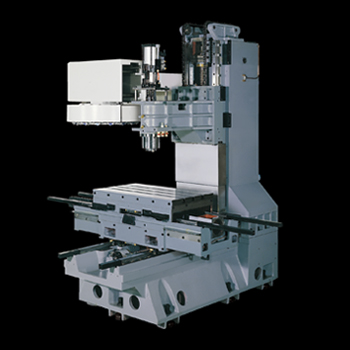

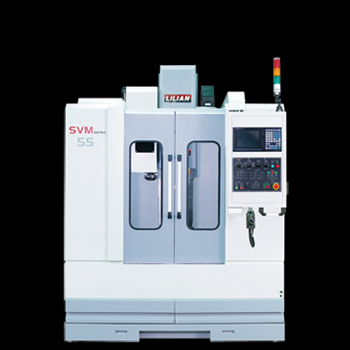

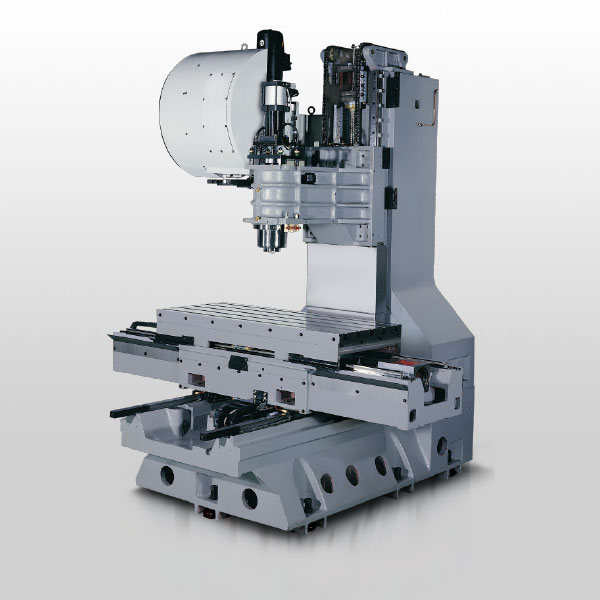

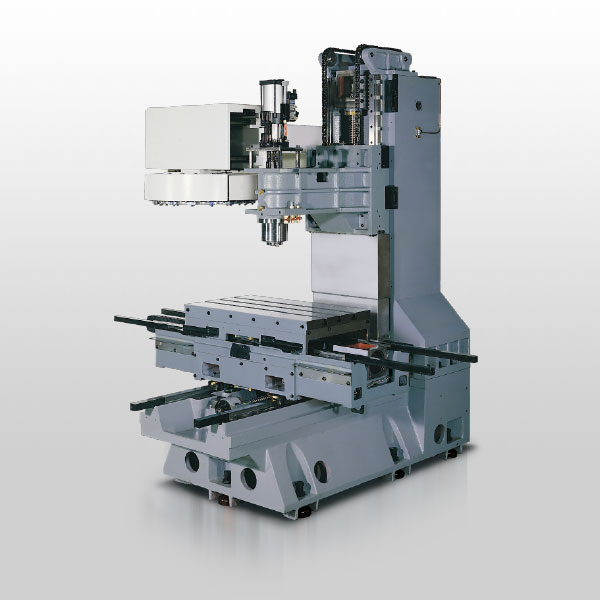

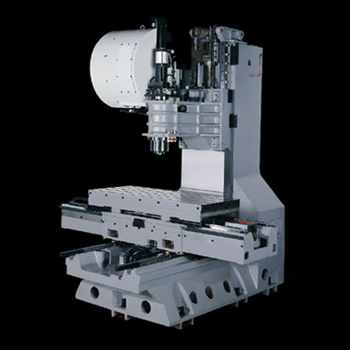

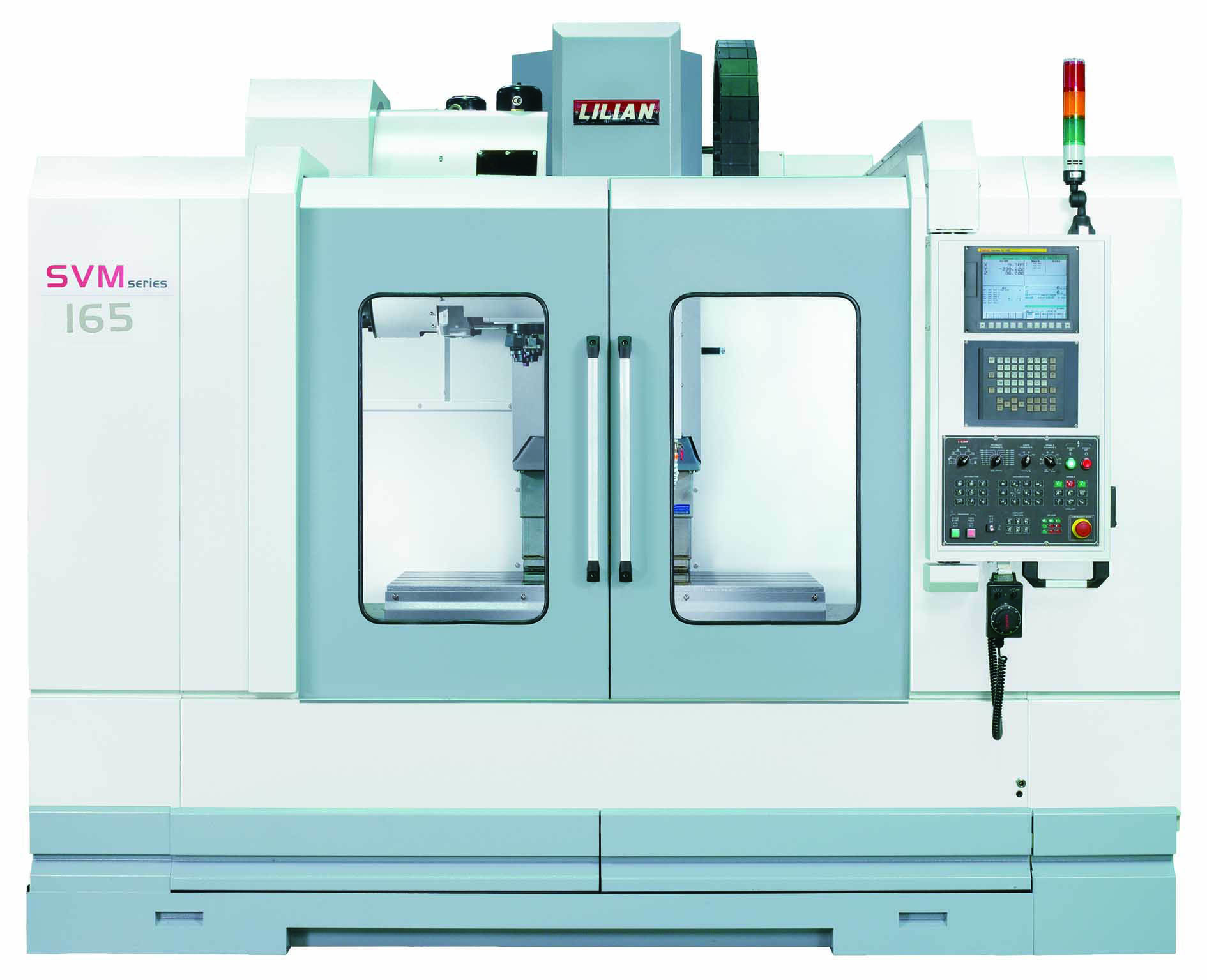

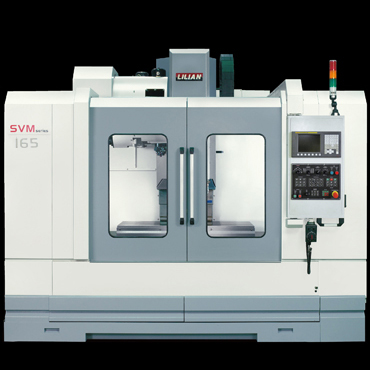

| SVM-55 | SVM-75 | SVM-105 | ||
| Working Table |
Table Size | 600 x 320 mm | 850 x 500 mm | 1200 x 500 mm |
| T-Slot (width x dis.x no.) | 14 x 100 mm x 3 | 18 x 100 mm x 5 | 18 x 100 mm x 5 | |
| Travel (X x Y x Z) | 550 x 410 x 460 mm | 750 x 500 x 510 mm (X : 850 mm Option) |
1050 x 510 x 560 mm | |
| Positioning XYZ axis | 0.005mm / 300mm | 0.005 / 300mm | 0.005 / 300mm | |
| Repeatability XYZ axis | ± 0.003 mm | ± 0.003mm | ± 0.003mm | |
| X/Y/Z-Axis Motor (Z axis with Brake) |
1.5 / 1.5 /1.5B kw | 1.5 / 1.5 / 1.5B kw | 1.5 / 1.5 / 1.5B kw | |
| Rapid Feed Rate (X/Y/Z) | 36 x 36 x 30 M/min | 36 x 36 x 30 M/min | 36 x 36 x 30 M/min | |
| Feed Rate (X/Y/Z) | 1-10000 mm/min | 1-10000 mm/min | 1-10000 mm/min | |
| Max. Table Load | 300 kgs | 500 kgs | 650 kgs | |
| Spindle | Taper | BT30 / BT40 | BT40 | BT40 |
| Main Motor | 3.7 Kw / 5.5 Kw | 7.5Kw | 7.5 / 11Kw | |
| Spindle Speed (RPM) | BT40: 8000 / 10000 / 15000 Built-IN : BT30 / 24000 |
8000 / 10000 / 12000 | 8000 / 10000 / 12000 | |
| Spindle Nose Vertical to Table Surface | 127 - 587 mm | 140-650 mm | 150-710 mm | |
| Spindle Center to Column | 410 mm | 556 mm | 608 mm | |
| Tool Magazine | Tool Storage Capacity (PCs) / ATC Type |
12 GENOVA / 16 ARM (OPT.) |
24 ARM | 24 ARM |
| Max. Tool Diameter / Weight | 80 mm / 7 kgs | 80 mm / 7 kgs | 80 mm / 7 kgs | |
| Miscellaneous | Air Requirement | 6 kg/cm2 | 6 kg/cm2 | 6 kg/cm2 |
| Power Requirements (KVA) | 15 | 15 | 15 | |
| Coolant Tank Capacity (L) | 180 | 200 | 250 | |
| Machine Weight | 3,000 kgs | 4,500 Kgs | 5,200 Kgs | |
| Machine Layout (W x D x H) | 2240 x 1900 x 2520 mm | 2700 x 2335 x 2620 mm | 2550 x 3050 x 2775 mm | |
| STANDARD ACCESSORIES | |
| ‧Coolant System ‧Auto Lubrication ‧Spindle Air Blast ‧Compact Fluorescent Work Light ‧Alarm System ‧Work Air Blast ‧Rigid Tapping ‧Heat Exchanger |
‧Enclosed Splash Guard ‧Auto Tool Changer ‧3 Axes Telescopic Steel Guard ‧RS232/ RJ45/ USB Interface ‧Auto Power Off (M30) ‧M.P.G ‧Level Pads & Bolts |
| OPTIONAL ACCESSORIES | |
| ‧Chain Type Chip Conveyor &
Chip Cart ‧Oil Coolant ‧Coolant Through Spindle (20~70 Bar) ‧CNC Rotary Table ‧Upgrade Motor ‧TS 27R Tool Setting ‧OMP40 / OMP60 Work Piece Setting |
‧Isolate type Transformer ‧Voltage Stabilizer ‧Angle Encoder (A,B,C axis) ‧Air Cooler for Control Box ‧Oil Skimmer ‧Air Gun & Water Gun |
| ‧Germany brand Heidenhain X+Y+Z axis Linear Encoders | |
