| All materials : Alumina oxide, zirconium oxide, organic glass, synthetic, black lead, copper,titanium. |
Exclusive 4-5 axis in +/- 230° , rotate axis can do the 360° circle around, this model including 3 pcs work table-standard table, lathe rotary table and the dental special purpose table. |
  |

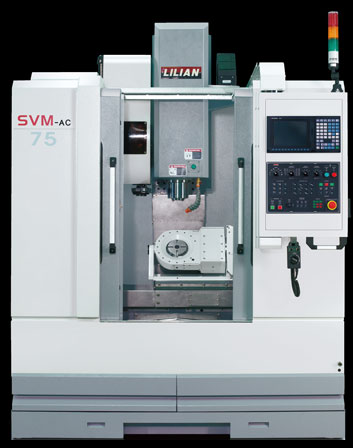

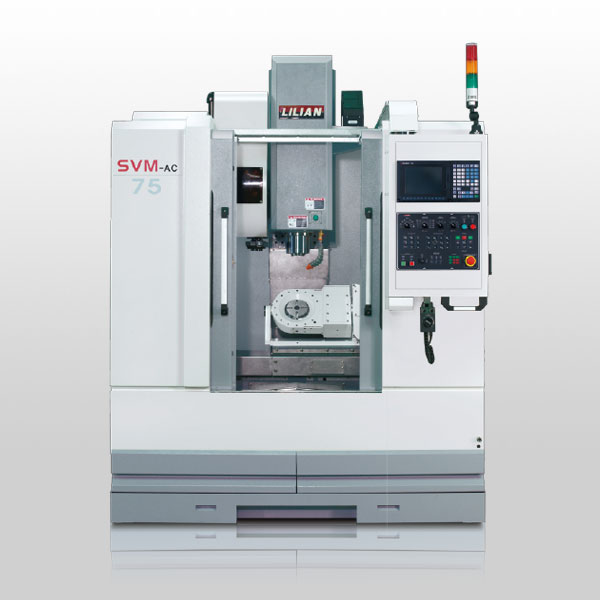

| SVM-55-AC | SVM-75-AC | ||
| Fixed Head + 200mm Tittling Rotary Table C axis |
Fixed Head + 200mm Tittling Rotary Table C axis |
||
| Working Table | Table Size | 600 x 320 mm | 850 x 500 mm |
| T-Slot (width.x No. x dis) |
14 x 100 mm x 3 | 18 x 100 mm x 5 | |
| Travel (X x Y x Z) | 550 x 410 x 460 mm | 750 x 500 x 510 mm (X : 850 option) |
|
| Positioning XYZ axis | 0.005 / 300mm | 0.005 / 300mm | |
| Repeatability XYZ axis | ± 0.003mm | ± 0.003mm | |
| X/Y/Z-Axis Motor (Z axis with Brake) |
1.5 / 1.5 / 4.0B Kw | 1.5 / 1.5 / 4.0B Kw | |
| Rapid Feed Rate (X/Y/Z) | 36 x 36 x 30 M/min | 36 x 36 x 30 M/min | |
| Feed Rate (X/Y/Z) | 1-10000 mm/min | 1-10000 mm/min | |
| Max. Table Load | 20 Kgs | 20 Kgs | |
| Spindle | Taper | BT30 / BT40 | BT30 / BT 40 |
| Main Motor | 7.5 Kw | 7.5 Kw | |
| Spindle Speed (RPM) | Belt Drive : 8000 / 10000 Direct Drive : 12000 / 15000 |
Belt Drive : 8000 / 10000 Direct Drive : 12000 / 15000 |
|
| Spindle Type (RPM) | BT30 Built-In : 24000 | BT30 Built-In : 24000 | |
| Spindle Nose Vertical to Table Surface | 127-587 mm | 130-640 mm | |
| Tool Magazine | Tool Storage Capacity (PCs) / ATC Type |
16 ARM | 24 ARM |
| Max. Tool Diameter / Weight | 80 mm / 6 kgs | 80 mm / 6 kgs | |
| Miscellaneous | Air Requirement | 6 kg/cm2 | 6 kg/cm2 |
| Power Requirements (KVA) | 20 | 20 | |
| Coolant Tank Capacity (L) | 180 | 200 | |
| Machine Weight | 3,000 Kgs | 4,600 Kgs | |
| Swivel Head (A Axis) |
Driver Type | Worm Gear | Worm Gear |
| Reduction Ratio | 1:90 | 1:90 | |
| Tilting Range | --230° ~ +230° | --230° ~ +230° | |
| Rotation speed | 22.2 rpm | 22.2 rpm | |
| Min. Unit | 0.001° | 0.001° | |
| Clamp Torque | 24 Nm | 24 Nm | |
| Rotary Table (C Axis) |
Type | Worm Gear | Worm Gear |
| Driver Type | 1:120 | 1:120 | |
| Table Diameter | 200 mm | 200 mm | |
| Center Bore Diameter | 30H7 mm | 30H7 mm | |
| Rotation Speed (RPM) | 16.7 rpm | 16.7 rpm | |
| Min. Index (Sec.) | 4" | 4" | |
| STANDARD ACCESSORIES | |
| ‧Coolant System ‧Auto Lubrication ‧Spindle Air Blast ‧Compact Fluorescent Work Light ‧Alarm System ‧Work Air Blast ‧Rigid Tapping ‧Heat Exchanger |
‧Enclosed Splash Guard ‧Auto Tool Changer ‧3 Axes Telescopic Steel Guard ‧RS232/ RJ45/ USB Interface ‧Auto Power Off (M30) ‧M.P.G ‧Level Pads & Bolts |
| OPTIONAL ACCESSORIES | |
| ‧Chain Type Chip Conveyor &
Chip Cart ‧Oil Coolant ‧Coolant Through Spindle (20~70 Bar) ‧CNC Rotary Table ‧Upgrade Motor ‧TS 27R Tool Setting ‧OMP40 / OMP60 Work Piece Setting |
‧Isolate type Transformer ‧Voltage Stabilizer ‧Angle Encoder (A,B,C axis) ‧Air Cooler for Control Box ‧Oil Skimmer ‧Air Gun & Water Gun |
|
‧Fanuc 0i-MD / 0i-MF function: AICCII +Data Server + Manual Guide i or Mitsubishi M70A ‧Germany brand Heidenhain X+Y+Z axis Linear Encoders |
|
