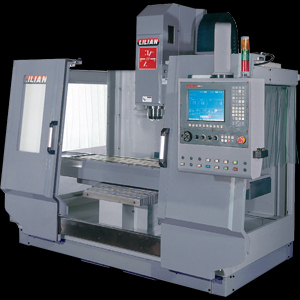

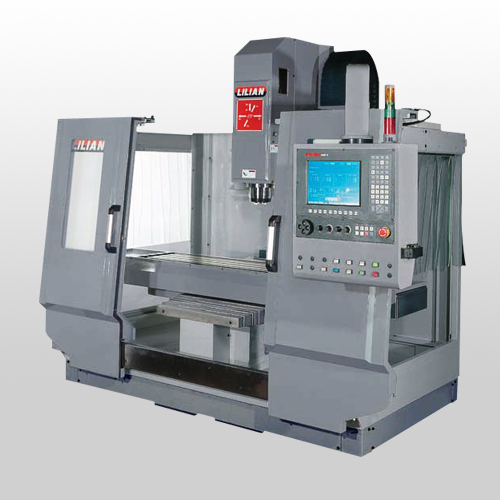

		CNC-400
Work Table	Table Size	406 x 1372mm
	T-Slot (W x N x P)	16 x 3 x 64mm
	Travel (X x Y x Z)	1000 x 500 x 520mm
	X,Y & Z Motor	FANUC/MITSUBISHI : 1.8x1.8x1.8B KW
	Rapid Speed	10 M/min
	Feeding Speed	1-5000mm
Spindle	Taper	BT 40 (CAT 40 / DIN 40 Opt.)
	Diameter	150mm
	SpindleMotor	FANUC / MITSUBISHI: 7.5 / 11 Kw
	Speed	8000 rpm
	Spindle Nose to Table Surface	100 - 600 mm
Auto Tool Changer	Tool Storage Capacity	16 Pcs Genova Type (Opt.)
	Max. Adjacent Tool Diameter	Ø75 mm
	Max. Tool Weight	7 Kgs
General Information	Coolant	1/4 HP
	Air Power Required	6Kgs/cm²
	Table Loading	600 Kgs
	Net Weight	3,500 Kgs
	Floor Space(L x W x H)	2450 x 2180 x 2300 mm
	Electric Power	25 KVA

STANDARD ACCESSORIES		OPTIONAL ACCESSORIES
‧Coolant System ‧Auto Lubrication ‧Spindle Air Blast ‧Halogen Work Light ‧Half Enclosed Splash Guard ‧Rigid Tapping ‧Telescopic Cover	‧Heat Exchanger ‧RS-232 or RJ-45 Interface ‧Auto Power Off ‧Three Color Alarm Light ‧Pendent Type MPG ‧Tool Box and Operation Manual	‧16 Pcs Genova-Type ATC ‧Oil Coolant ‧Belt Drive Spindle Speed 10,000rpm and Oil Coolant ‧CNC Rotary Table.
