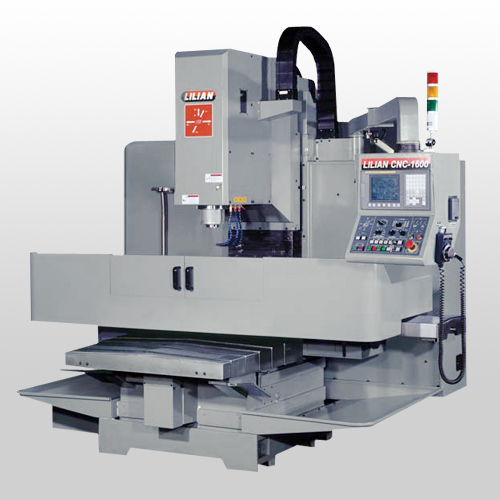

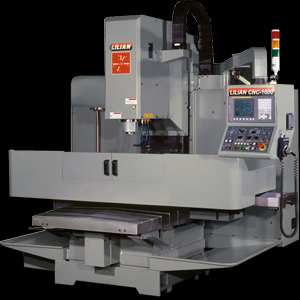

 CNC-1600 (BT40) Belt Drive
 CNC-1600G (BT40) Gear Head
 CNC-1600G (BT50) Gear Head
Working Table
 Size
 1900x500mm
 1900x500mm
 1900x500 mm
T-Slot (W x No. x Dis.)
 18 x 5 x 80mm
 18 x 5 x 80mm
 18 x 5 x 80mm
Traveling
 1600 x 620 x 630 mm
 1600 x 620 x 630 mm
 1600 x 620 x 610 mm
Positioning Accuracy
 0.005/300mm
 0.005/300mm
 0.005/300mm
Repeatability X/Y/Z
 +-0.003 mm
 +-0.003 mm
 +-0.003 mm
X,Y & Z Motor
 1.5 Kw
 1.5 Kw
 1.5 Kw
Rapid Feed Speed
 10000 mm/min
 10000 mm/min
 10000 mm/min
Cutting Feed Speed
 1-8000 mm/min
 1-8000 mm/min
 1-8000 mm/min
Spindle
 Taper
 BT40
 BT40
 BT50
Diameter
 150mm
--
 --
Motor
 11/15 Kw
 11/15 Kw
 15/18.5 Kw
Speed
 8000 rpm
 8000 rpm
 6000 rpm
General Information
 Air Power Required
 6Kgs/cm² 6Kgs/cm² 6Kgs/cm²
Coolant Pump
 1/4 HP
 1/4 HP
 1/4 HP
Work Table to Floor
 880 mm
 880 mm
 880 mm
Electric Power
 20 KVA
 20 KVA
 20 KVA
Net Weight
 6,500 KGs
 6,650 KGs
 6,700 KGs


STANDARD ACCESSORIES OPTIONAL ACCESSORIES
‧Coolant System
‧Auto Lubrication
‧Spindle Air Blast
‧Halogen Work Light
‧Half Splash Guard only
‧Rigid Tapping		 ‧Heat Exchanger
‧RS-232 or RJ-45 Interface
‧Auto Power Off
‧Three Color Alarm Light
‧Pendent Type MPG
‧Tool Box and Operation Manual		 ‧24 Pcs Arm-Type ATC
‧Oil Coolant
‧CNC Rotary Table
‧Belt Drive Spindle Speed 10, 000rpm
and Oil Coolant
