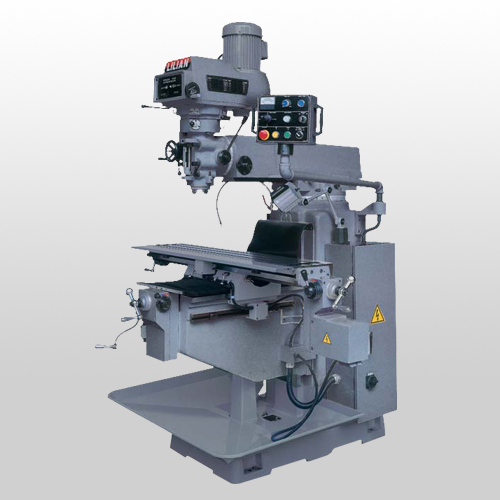

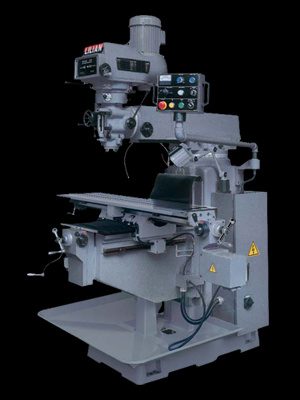

6H / 6VH / 6VI |
| Table Size |
254 x 1372mm
(305 x 1372mm) Opt.onal |
| Travel (X x Y x Z) |
X : 875 mm |
| Y : 400 mm (Opt.on: 350 mm) |
| Z : 445 mm |
| Quill Travel |
127 mm |
| Quill Diameter |
105 mm |
| SpindleMotor |
5HP |
| SpindleTaper |
NT40 |
| Spindle Speeds-rpm |
60-3450 / 60-4200 / 60-4200 |
| Motor (X x Y x Z) |
1/2 x 1/2 x 1HP |
| Motor(Coolant) |
1/8HP |
| Feeds (X , Y)-rpm |
0-1420 (50HZ) / 0-1730 (60HZ) |
| Feeds (Z)-rpm |
0-470 (50HZ) / 0-560 (60HZ) |
| Table Loading |
500 Kgs |
| Overall Depth (L) |
1720 mm |
| Overall Width (W) |
1510 mm |
| Overall Height (H) |
2240 mm |
| Net Weight |
1700 Kgs |
| * |
Standard
Features: X & Y axes Reducing Motor, Japanese Brand " YASKAWA"
inverter control X&Y axes feeding, Auto Knee, Auto lube, Coolant
& Chip pan, Halogen work light,Way covers.
Opt.on: Pneumatic power drawbar, Digital readout. |
|
