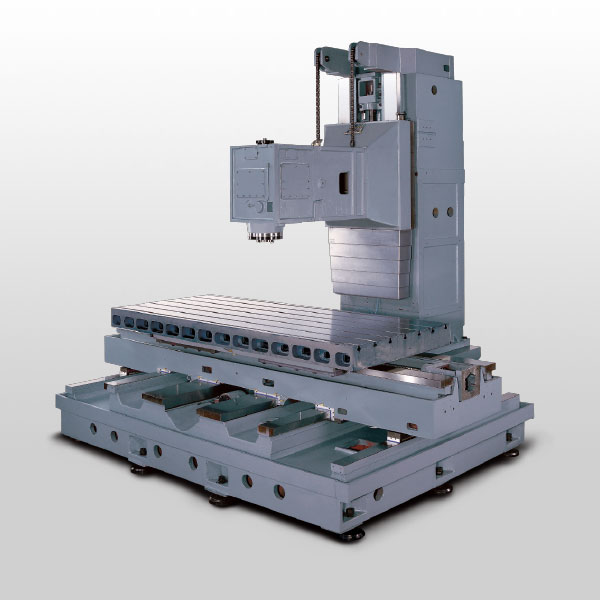

| DMC-1600/1900 With Four Box Machine Body. |
Built-in Type 6000 Rpm Gear Head(BT50). |
High Torque With Low And High Speed. |
  |
  |

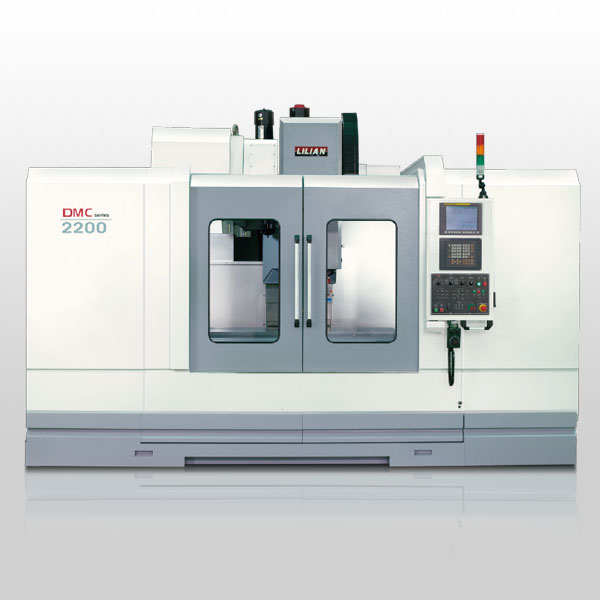

| DMC-1600 (G) | DMC-1900 (G) | DMC-2200 (G) | ||
| Four Box Way | Four Box Way | Six Box Way | ||
| Working Table |
Table Size | 1700 x 815 mm | 2100 x 1000 mm | 2400 x 1000 mm |
| T-Slot (width x dis.x no.) | 18 x 150 x 5mm | 18 x 150 x 7 mm | 18 x 150 x 7 mm | |
| Travel (X x Y x Z) | 1600 x 800 x 700 mm | 1900 x 1000 x 800 mm | 2200 x 1000 x 800 mm | |
| Positioning XYZ axis | 0.005 / 300mm | 0.005 / 300mm | 0.005 / 300mm | |
| Repeatability XYZ axis | ± 0.003mm | ± 0.003mm | ± 0.003mm | |
| X/Y/Z-Axis Motor (Z axis with Brake) |
4 / 4 / 4B kw | 7 / 7 / 7B kw | 7 / 7 / 7B kw | |
| Rapid Feed Rate (X/Y/Z) | 15 x 15 x 12 M/min | 15 x 15 x 12 M/min | 15 x 15 x 12 M/min | |
| Feed Rate (X/Y/Z) | 1-10000 mm/min | 1-10000 mm/min | 1-10000 mm/min | |
| Max. Table Load | 2000 kgs | 3000 kgs | 4000 kgs | |
| Spindle | Taper | BT50 (Gear Head) | BT50 (Gear Head) | BT50 (Gear Head) |
| Main Motor | 15 / 18.5Kw | 15 / 18.5Kw | 15 / 18.5 Kw | |
| Spindle Speed (RPM) | 6000 | 6000 | 6000 | |
| Spindle Nose Vertical to Table Surface | 200-900 mm | 150-950 mm | 150-950 mm | |
| Spindle Center to Column | 855 mm | 1100 mm | 1100 mm | |
| Tool Magazine | Tool Storage Capacity (PCs)/ ATC Type |
24 ARM 40 CHAIN |
24 ARM 40 CHAIN |
24 ARM 40 CHAIN |
| Max. Tool Diameter / Weight | 125 mm / 15 kgs | 125 mm / 15 kgs | 125 mm / 15 kgs | |
| Miscellaneous | Air Requirement | 7 kg/cm2 | 7 kg/cm2 | 7 kg/cm2 |
| Power Requirements (KVA) | 30 | 40 | 50 | |
| Coolant Tank Capacity (L) | 300 | 300 | 300 | |
| Machine Weight | 15,000 Kgs | 18,000 Kgs | 20,000 Kgs | |
| STANDARD ACCESSORIES | |
| ‧Coolant System ‧Auto Lubrication ‧Spindle Air Blast ‧Compact Fluorescent Work Light ‧Alarm System ‧Work Air Blast ‧Rigid Tapping ‧Heat Exchanger |
‧Enclosed Splash Guard ‧Auto Tool Changer ‧3 Axes Telescopic Steel Guard ‧RS232/ RJ45/ USB Interface ‧Auto Power Off (M30) ‧M.P.G ‧Level Pads & Bolts |
| OPTIONAL ACCESSORIES | |
| ‧Chain Type Chip Conveyor &
Chip Cart ‧Oil Coolant ‧Coolant Through Spindle (20~70 Bar) ‧CNC Rotary Table ‧Upgrade Motor ‧TS 27R Tool Setting ‧OMP40 / OMP60 Work Piece Setting |
‧Isolate type Transformer ‧Voltage Stabilizer ‧Angle Encoder (A,B,C axis) ‧Air Cooler for Control Box ‧Oil Skimmer ‧Air Gun & Water Gun |
| ‧Germany brand Heidenhain X+Y+Z axis Linear Encoders | |
