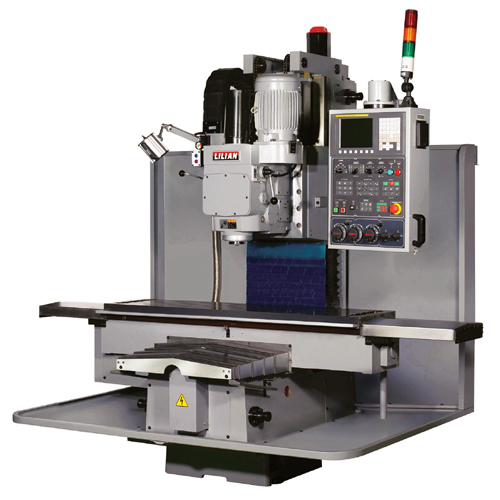

  OX-1 CNC
Work Table Table Size 400 x 1500mm
T-Slot (W x N x P) 16 x 5 x 63mm
Travel (X x Y x Z) 1300 x 500 x 600mm
Position Accuracy 0.005mm / 300mm
Repeatability Accuracy ± 0.005mm
X,Y & Z Motor FANUC Beta 12is
Rapid Speed 10 M/min
Feeding Speed 1-7500mm
Spindle Taper NT 40
Spindle Motor 5HP/4P
Speed 70-3540 rpm (16 Steps)
General Information Distance of Spindle nose to table surface
 100-700mm
Distance of spindle center to column
 530mm
Table Loading 700 Kgs
Net Weight 3,650 Kgs
Floor Space(L x W x H) 2450 x 2145 x 2300 mm
Electric Power 15 KVA
STANDARD ACCESSORIES OPTIONAL ACCESSORIES
‧Coolant System
‧Auto Lubrication
‧2 pcs Halogen Work Light
‧Chip Pan
‧Telescopic steel guard on Y axis
‧Fanuc controller
 ‧RS-232 or RJ-45 Interface
‧Three Color Alarm Light
‧MPG
‧Tool Box and Operation Manual
‧Operation Manual

 ‧Pneumatic Power Drawbar
‧Digital Readout
‧15KVA Transformer
